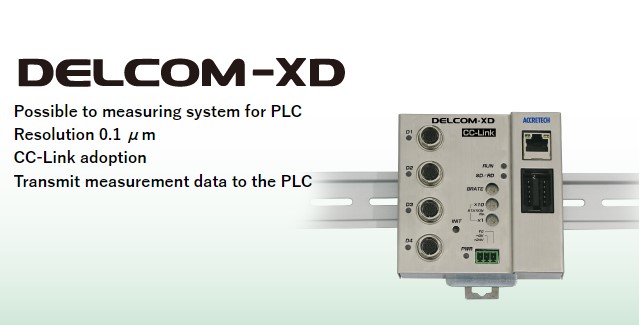

Delcom-XD is a new type of controller that specializes in transmitting high-precision measurement data directly to the PLC.
CC-Link open network and Ethernet Local Area network (TCP socket) technologies are used in this product to provide high speed network communications.
The wire‐saving design with only one single communication cable simplifies the process of connecting to a PLC.
Simple and compact body performed with DC24V, DELCOM-XD is designed to be set in the control box of IoT （Internet Of Things） systems.

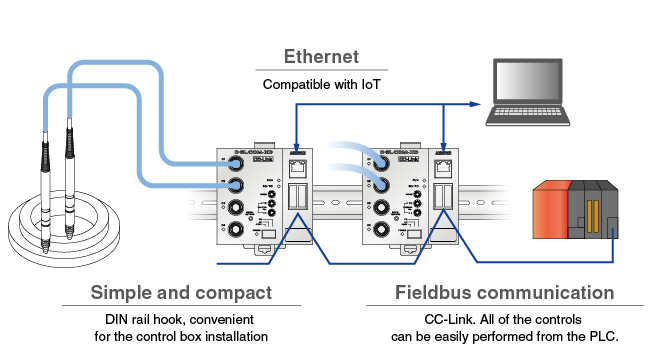

Delcom-XD’s installation is greatly simplified. The set up can be completed with only one touch with a standard type of connector or a DIN rail hook (option) .
Direct Transmission of Measurement Data to The PLC
The measurement data can be directly transmitted to the PLC via CC-Link
Various gauges
It can correspond to the pencil type measuring instrument, the lever type measuring head and the miniature digital measuring head.
Contributing to cost reduction
As in the past, there is no need an input unit (analog unit, counter unit) in the PLC, contributing to cost reduction.
Multipoint measurement
Ideal for multipoint measurement, because Maximum 4 gauge connections per machine.Be able to increase the number of connections to the PLC within CC-Link standard (maximum 64 stations).
Easy control
It can be controlled by simple PLC program. All operations can be performed by PLC I/O.
High speed sampling
Internal sampling time is 2 msec.It exerts the effect when using the memory function and the outer diameter calculation function.
The memory function
Maximum, minimum, the P-P value can be stored. Data update is performed at internal sampling time.
The outer diameter (Thickness) calculation function.
Outer diameter calculation (2 gauge addition) is possible. 2 gauge data simultaneity is guaranteed with internal sampling time.
Ethernet
Ethernet (TCP socket) interface as standard, IoT system introduction possible. It is possible to check by a remote PC or server; the operation status, measurement data, operation information etc. It support to visual control.
