16 type settings
Controller can have maximum 16 settings ( 2 measuring items x 8 settings ) of each process.
Thus, it will be able to shorten the parameter resetting time after setup.
Color LCD display with touch panel
Intuitive operation is possible by color LCD view and touch panel function.
Easy setting
Parameter setting is easy more than conventional products through setting support function (auto noize cancel, auto gain control, etc.) .

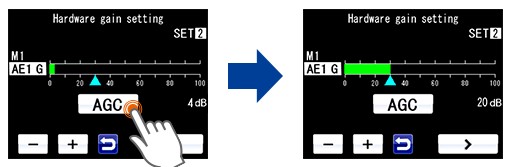

When AGC button is touched, Sensor gain is set the suitable level.

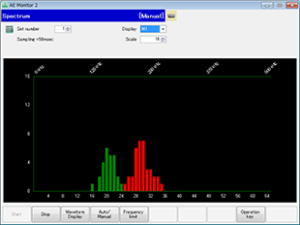

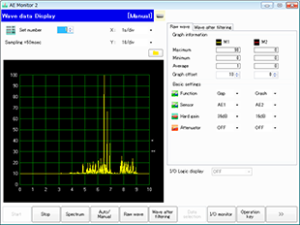

PC Application for the exclusive use of GE-11 / 20.
This application is used a parameter setting , analyzing, confirm of test process, etc.
PC application “AE-MONITOR2”

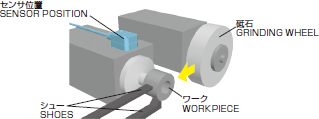

Gap detection
- Shorten the cycle time
- Zero position detection
PULCOM GE series detect the contact between the grinding wheel and the work piece and send the signal to NC immediately. Using this signal, NC can increace the feed rate of the air cutting to reduce the cycle time. And also NC can grind the constant amount from the surface of the workpiece.
| Model | Γ-DⅡ | |
|---|---|---|
| Product code | 0966100 | |
| Standard finger length | 82 mm | 152 mm |
| Repeatability | ≦ 0.2 µm (4 σ) | ≦ 0.4 µm (4 σ) |
| Wide linear range (Reference value) |
≦0.05% / F.S. (12.5 mm range: ≦6.3 μm) |
≦0.05% / F.S. (20 mm range: ≦10 μm) |
| Narrow linear range (Reference value) |
≦ 0.5％（≦ 5 μm）/ ± 500 μm | |
| Measuring force (Downward) | 1.4 to 3.6 N | 0.8 to 2.2 N |
| Measuring range | 12.5 (± 6.25) mm | 20 (± 10) mm |
| Pre travel | 6.35 to 6.7 mm | 10.2 to 10.85 mm |
| Retract stroke | 6.5 to 7 mm | 10.5 to 11.35 mm |
| Retract system (Air pressure supply) |
Single-acting air cylinder (0.35 MPa to 0.5 MPa) | |
| Waterproof standard | IP67 compliant | |
| Diameter and length of the cable | φ 5.6 mm, 6 m | |
| Weight (Body) | Approx. 0.8 kg | |
