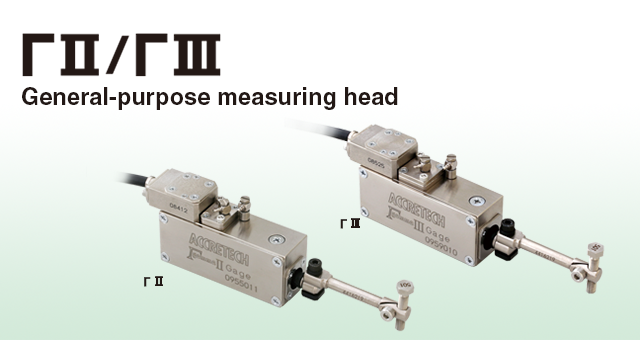

Various Measurement Applications are Possible.
Measuring Inner diameter,
Outer Diameter, Eccentricity and Difference in Level, etc.
Multi-lineup
Retraction function built-in model and model for work with notch is
also lined up
High precision and Compact
High accuracy：Repeatability: ≤ 0.2 μm (4 σ)
Compact：It can be installed on a limited space by the built-in type retract air cylinder.

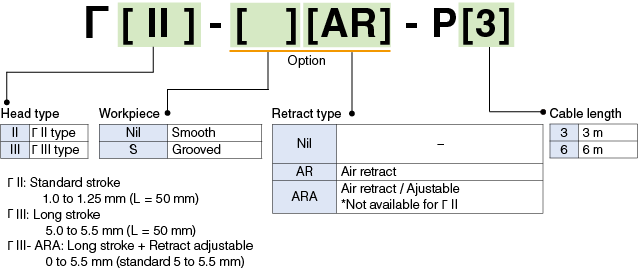

How to order

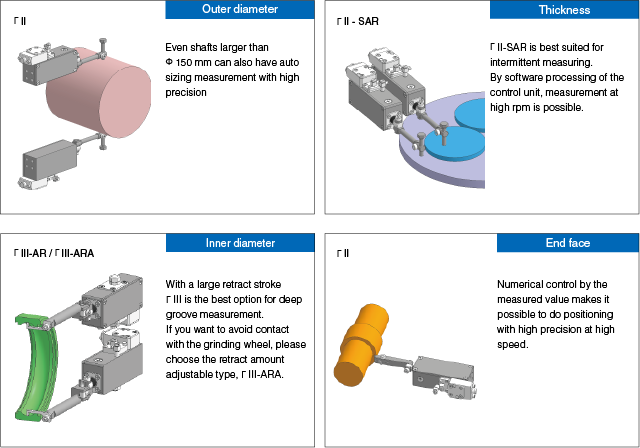

Overview for Outer diameter and Inner diameter measurement

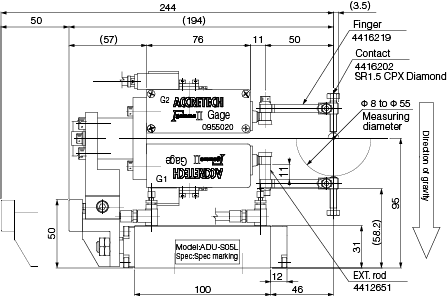

Outer diameter

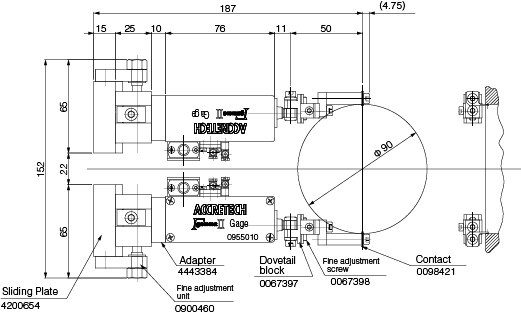

Inner diameter

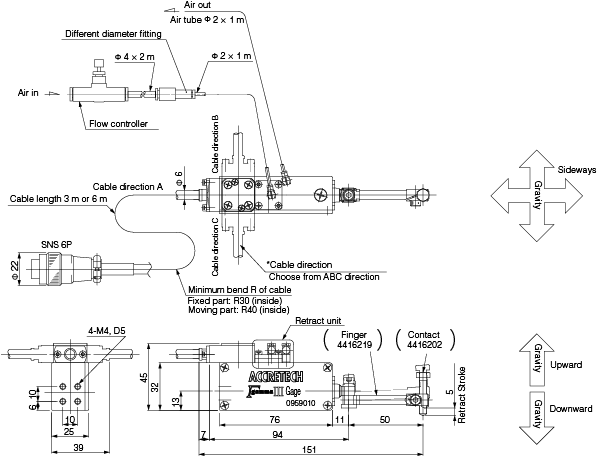

General purpuse use

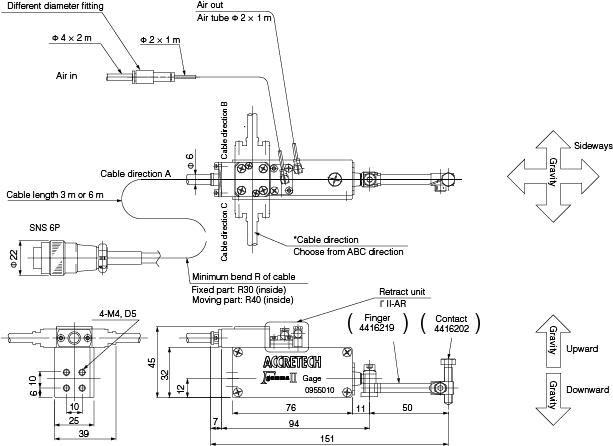

* Please inform the gravity and cable directions when placing the order.

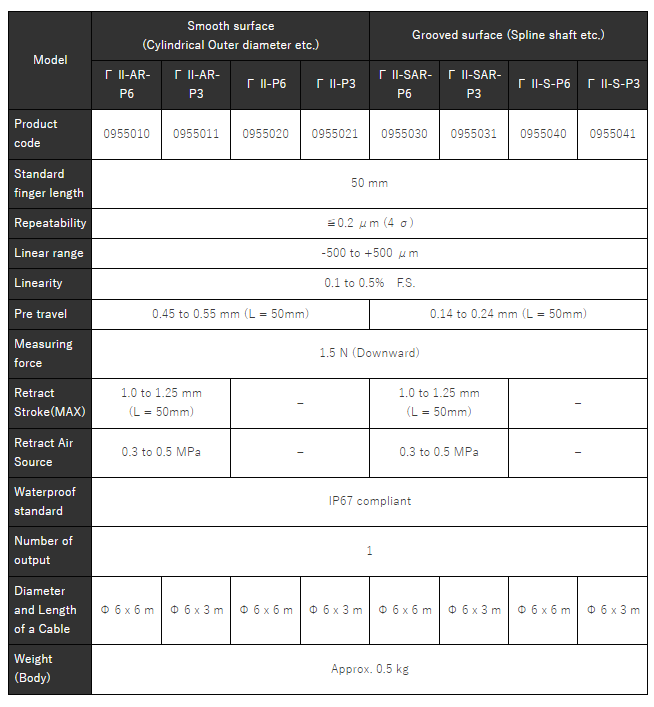

Specifications
High precision cross fulcrum mechanism expands the retract amount with the Γ Ⅱ size.
* Please inform the gravity and cable directions when placing the order.

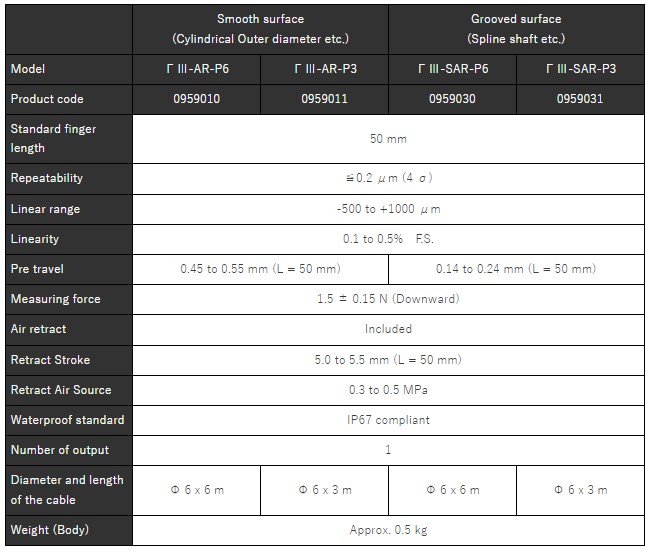

Specifications

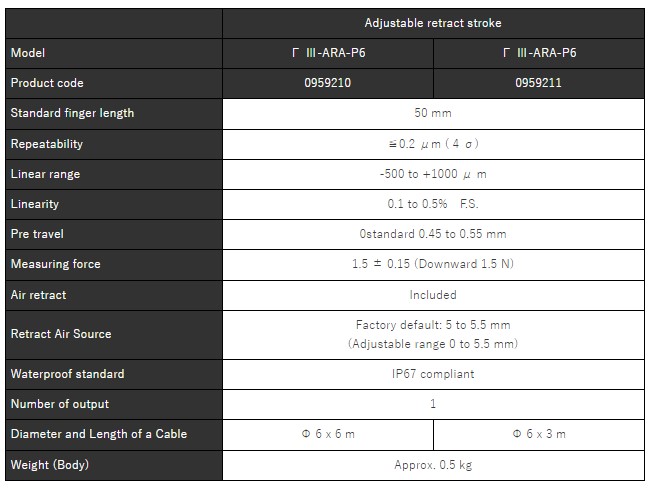

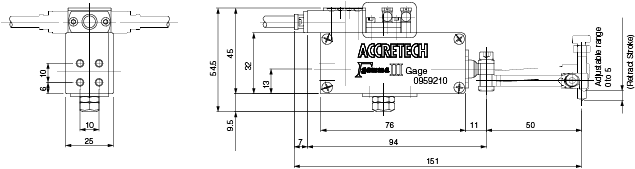

Γ III-ARA adjustable retract amount
* Please inform the gravity and cable directions when placing the order.
