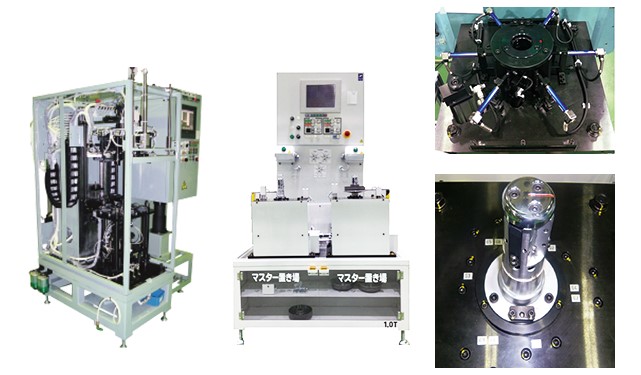

CVT Pulley measuring machine
This machine measures the groove dimensions of the CVT PULLEY on fixed side and sliding side, OBD diameter, inside and outside diameter, splitting groove degree by using an electric micrometer and a digital scale. And then it displays the measurement result on the measuring control unit screen and also judges whether it’s OK or NG.

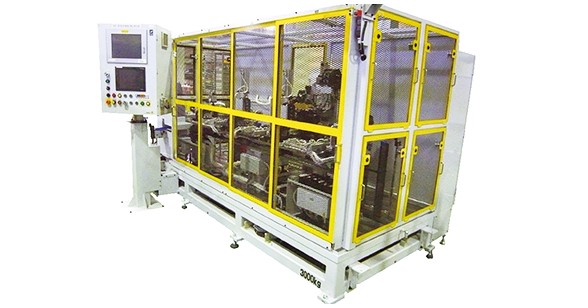

Torque converter measuring machine
This machine is an automatic machine that can measure the check items of torque converter as below. And the multiple use of the work is possible if you exchange the setup simply.
List of the check items : the hole position, HUB height, standards BOSS end face height, HUB, BODY outside dimension, measurement of each type of RING GEAR, large and small SPLINE rotation TORQUE.

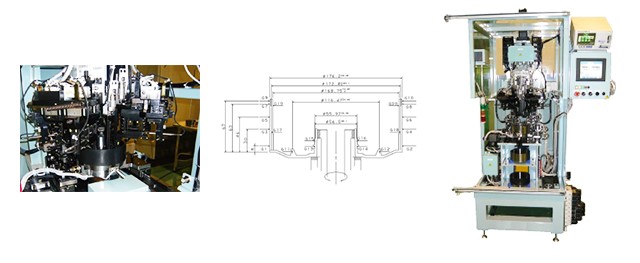

AT Housing
This unit measures inner and outer diameter, groove bottom diameter and deflection of A/T housing by using electric micrometer, and judges whether the product is OK or NG.

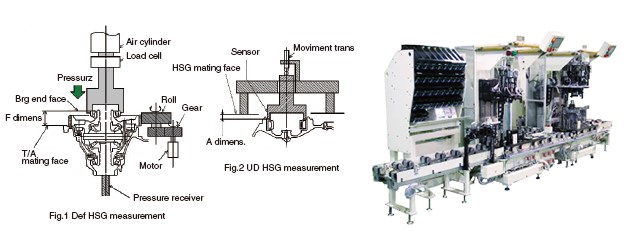

Transmission shim selection machine
This machine measures how high two parts are positioning before assembly so that the proper preload is applied to the bearing of the drive shaft of the transmission. It is a measuring instrument that selects a shim with appropriate thickness for assembly by calculation.

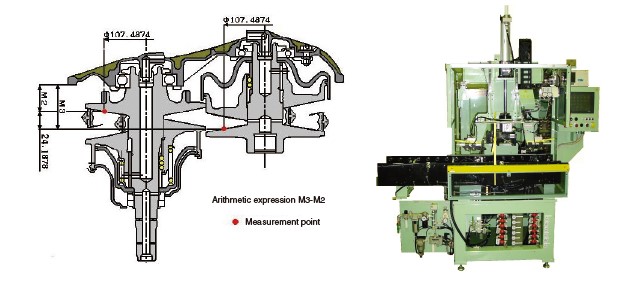

CVT sheave alignment measuring machine
This machine measures the mutual positioning of the CVT when assembling the CVT sheave in the rear case by an electric micrometer. Next, it makes a judgement and displays the result by the control unit. From the result it calculates the alignment dimensions needed for assembly.
