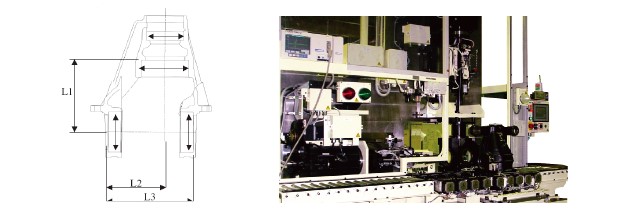

Carrier alignment measuring machine
This machine automatically measures the hole size of the carrier and the distance from the hole to the end face.
This information is needed when the shim is selected for differential assembly and carried out to the postprocess after writing the information on it by ID.

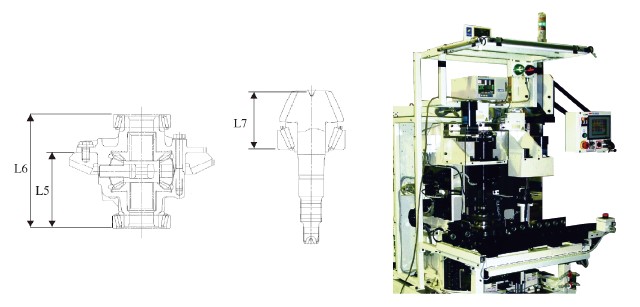

Differential case, drive pinion set width measuring machine
This machine measures the height dimension under the condition that the bearing is assembled to the differential case and drive pinion.
This information in needed when the shim is selected for differential assembly and carried out to the post-process after writing the information on it by ID.
Companion deflection measuring machine
This machine measures the companion rotating run-out and marks where I occurs maximum.
The measurement should be made when the condition that the differential is assembled.
This marking is required during the assembly with propeller shaft to be connected.
Side shim selection machine
This machine measures the distance between case mating surface and dif. outer mounting surface, and the distance of UD shaft gear end surface. According to the measured value and ID reading, it selects the dif.side shim and UD shim required for assembling.
